Making of Portrait of a Silent Man


by
Patrick Eischen, Luxembourg
Web
-->
505527_Great Preimum Speakers for All Applications At Klipsch.com!  Click Here!


We have to thank Mr.  Patrick Eischen , for this tutorial we borrow it to you as he publish it only for help, thanks again.
 here is his post.....

Hi, my name is Patrick Eischen, and I am from Luxembourg. I am going to show you how I created my image “Portrait of a silent man” using Cinema 4D and ZBrush.


About the Image


There are many rendered portraits in a lot of galleries. I was always impressed by the high quality of the MentalRay FastSkin shader and how easy it was to set it up once you understood the basic concept of how skin works. But as I “only” have Cinema 4D, MentalRay is not an option for me. But isn’t it possible to render realistic skin in Cinema 4D? I wanted to find out with this project.


Modeling


I usually start my 3d models with a simple cube (box modeling). I know that many prefer point-by-point modeling (or poly-by-poly) but I like using a cube and ‘cutting’ the detail in, step-by-step. Box modeling allows me to quickly block out the basic shape of the figure and thus to have a better feeling for the proportions of the model. But because I am using good references, any modeling technique would have worked.

The face modeling is finished, I began laying out the UVs (maybe the most annoying part of this job). Fortunately I found UVLayout (by Headus), a free program that flattens 3D geometry automatically.

Textures


I took the model into ZBrush to add a texture on the face. Every inch of the texture comes from high-resolution photos which where projected onto the model with the ZBrush tools. Wesclei Barbosa has written a tutorial about how to do that. All my reference photos as well as the texture references are from www.3d.sk.

This is how the final head texture looks:

used this same texture to create the skin details. I turned it into a black & white image and created a mask of it in ZBrush. Now I was able to use the Inflate brush and sculpt all the little skin details. This technique is explained in this video tutorial. I also included some volume for the hair with a custom brush. Finally I created and extracted a displacement map of the head.
  Skin Shader

Now comes the hardest part: setting up the skin shader. For this image I used the Vreel Skin Shader, a plug-in shader for Cinema 4D that allows you to set up different layers of skin and which also includes a SSS effect. It is possible to setup parameters for specularity, surface and translucent. The shader is loaded in the Luminance channel.



Here is a first test render of this shader where only the color map is loaded.


500856_Get free shipping from 1-4pm EST today only at the TCM Shop! Just use the code TCMSHIP at checkout

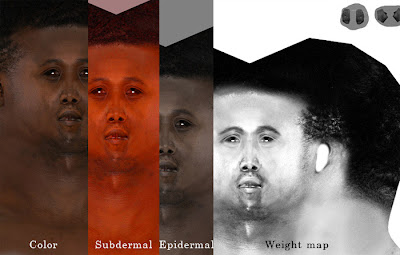

As you can see, most of the texture has been ‘overwritten’ by the shader. That’s because I only loaded a color map until now. In the next picture I used an epidermal map and a subdermal map mixed together with a weight map. All maps are modified versions of the original color map.

  This is how the luminance channel looked like after loading the different maps. The default color map is loaded into the standard Cinema Color channel.

I think the default c4d color channel is much easier to set up, so that’s why I left “Calculate Surface Shading” blank. And I used “Calculate Specularity” to create an even amount of overall brilliance in the skin (see picture below). The standard C4D specularity channel has been used to create nice sharp specs on the edges (e.g. the lips and on the nose). Both specularity channels have been restricted to a map.

The final skin shader is made up of 6 different channels: Color, Diffusion, Luminance, Bump, Displacement, Specular and Specular Color.


I quickly modeled a simple shirt, took it into ZBrush, divided it a couple of times and sculpted some cloth wrinkles with the Inflate brush. I also modeled the arms and shoulders and composed everything together in Cinema. There was no need to use displacements on the shirt; I simply exported the high-resolution mesh from ZBrush. I have a lot of memory, so I don’t have to worry that my computer might crash. There is almost no difference in render times between the low- and high-resolution shirt.

 361242_New product: FREE Shipping on personalized NFL pens. Your team + your name!
The texture for the shirt has been created by playing around with some filters and by using the “dodge” and “burn” tools.

  Lighting

For this image I couldn’t use the Global Illumination system because Vreel Skin doesn’t work with GI, so I had to use standard Cinema lights. I created a 3-point-lighting with:


1) Main Spot @ 115 %

2) Fill Area @ 95 %
3) Rim Spot @ 190 %I also include an area light
4) with very low intensity, placed below the model to simulate bouncing light from the bottom.

All lights use soft shadows and “Falloff” is set to “Inverse Square”.


Hairs

Now comes the funny part: the hairstyle and the beard. I used Cinema’s hair module for this job. I created two additional maps: an alpha map for the beard and one for the hair. Both maps were loaded into the “Density” channel of the hair objects. Unfortunately the density map will not take effect in the editor view. It will only be visible in the final render. So I would suggest setting “Display” in the “Editor” tab to “Hair Lines” if you have enough memory in your computer.



I created eyelashes and a wet layer for the eyes. For the eyelashes I selected an edge loop around the eye, created a spline from it and pressed the “Add hair” button.

Rendering and Post Production

The render with Vreel skin shader and displacement took about 4-5 hours (1h30min without displacement). I rendered the hair and beard in a separate pass and composed both in Photoshop. Further more I rendered an Ambient Occlusion pass and multiplied it over the picture. I wasn’t happy with the way the eyes looked, so I copied parts of an eye photograph over the image. I finally did some color correction, applied Gaussian Blur to simulate DOF and added a grain layer. Here is the final image.



237641_Get your Twilight Saga/Breaking Dawn gear and Save 15% on orders $40 or more!
Thank you for reading my “Making of”. I hope it was any help for you. For further questions you can contact me any time.

Keep on rendering!
